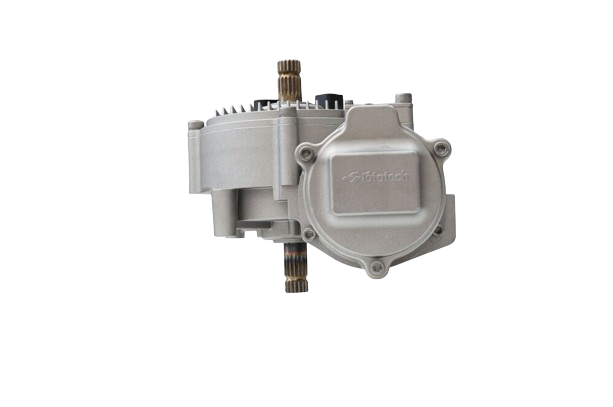

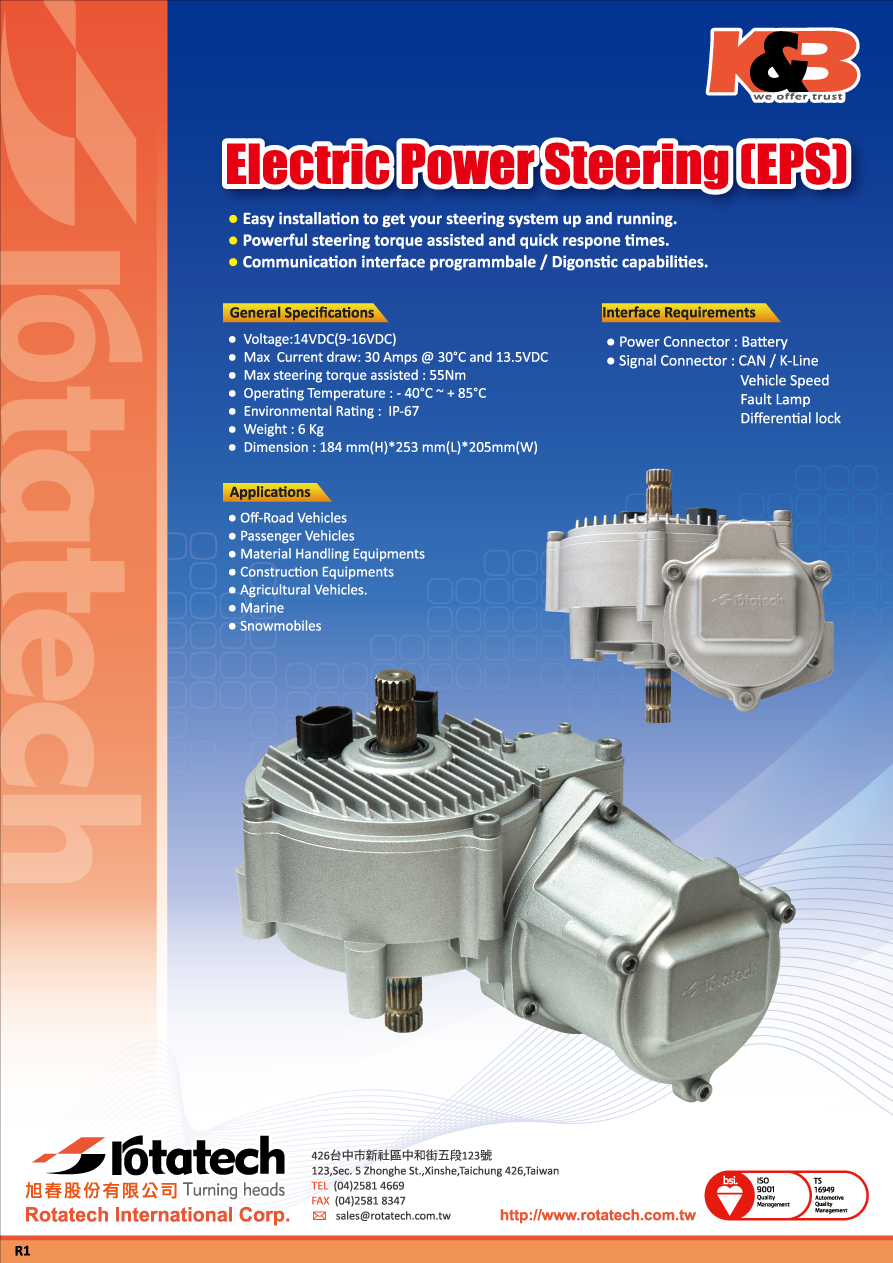

Electric Power Steering

Service

Assembly

Overview

Specification

Rotatech offers a full assembly service with a team of professional assemblers to ensure that every product produced meets high standards. The bespoke assembly process ensures a quick, efficient, and high-quality finished product.

• Supply voltage：14VDC (9~16VDC)
• Max Battery Current：40 Amps @ 30ºC and 13.5VDC
• Max steering torque assist ：55 Nm
• Min Operating Temperature：-40ºC
• Max Operating Temper
• Environmental Rating：IP67
• Total Weight：6kg
• Package size：184mm(H)x253mm(L)x205mm(W)
• Power Connector：Battery (+,-)
• Signals Connector：Including

Apply field:

Power Sport Vehicles
Passenger Vehicles
Material Handing Equipment
Construcation Equipment
Agricultural Marine

OBDII(KWP2000)
Vehicle speed
Fault output
Lock
